Titanium gate valve

Titanium knife gate valve

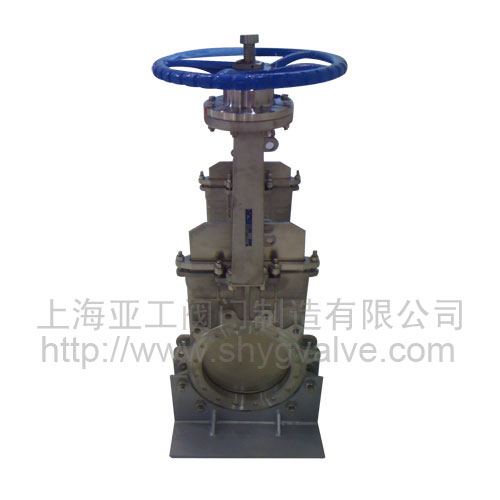

  Titanium knife gate valve
share

Product characteristics and USES:

Knife gate valve type and smell gate, namely valve plate like the shape of "dao".

Titanium type knife gate valve is for a place on a line, need to "open, close" control system and pressure drop of fluid flow through only to a small used to produce and design. When a system of one part in isolation, without considering fluid throttling control gate is ideal and suitable.

Titanium type knife gate valve technical specification:

Design standards: GB/T12234

Structure length: GB/T12221

Connecting flange: HG, GB, JB

Test standard: JB/T9092, GB/T13927

Titanium type knife gate valve body material:

Body and bonnet: TA1, TA2, TA10, Gr2, Gr3

Ram: TA1, TA2, TA10, Gr2, Gr3

Stem: TA1, TA2, TA10, TC4, Gr2, Gr3, Gr5

Seal: NBR, EPDM, PTFE, TA1, TA2, Gr2, Gr3

Pressure rating: PN1.0-1.6 Mpa

Nominal diameter: 2 (- DN1000 "- 40"

Drive mode: manual, pneumatic, hydraulic, electric
